Ascension F30

12-Inch, Ceramic, Guitar Loudspeaker

(0 Reviews)  Review this item
AVAILABILITY : IN STOCK
£135.45
RRP Inc. VAT

Awarded GuitarPlayer magazine's Editor's Pick in October 2022

The Ascension F30 is a 30 watt, ceramic magnet, guitar speaker. Suitable for reproducing both American and British type sounds, it’s perfect for players seeking vintage rock tones in abundance. While remaining faithful to the Fane Ascension series tonal character, the F30 is voiced with a strong, tight crunch and low-end presence that offers powerful low-mid’s. Cutting through the mix with an attacking upper mid-range and a forward, rich and open, alnico-like, detailed top end. When played clean, tones are detailed and articulate.

The F30 can be used in 1x12 low-powered amps or in multiples for 2x12 or 4x12 medium to high-power, high gain amps.

In the USA? Stock available from Avatar Speakers

The Ascension F30 is a 30 watt, ceramic magnet, guitar speaker. Suitable for reproducing both American and British type sounds, it’s perfect for players seeking vintage rock tones in abundance. While remaining faithful to the Fane Ascension series tonal character, the F30 is voiced with a strong, tight crunch and low-end presence that offers powerful low-mid’s. Cutting through the mix with an attacking upper mid-range and a forward, rich and open, alnico-like, detailed top end. When played clean, tones are detailed and articulate.

The F30 can be used in 1x12 low-powered amps or in multiples for 2x12 or 4x12 medium to high-power, high gain amps.

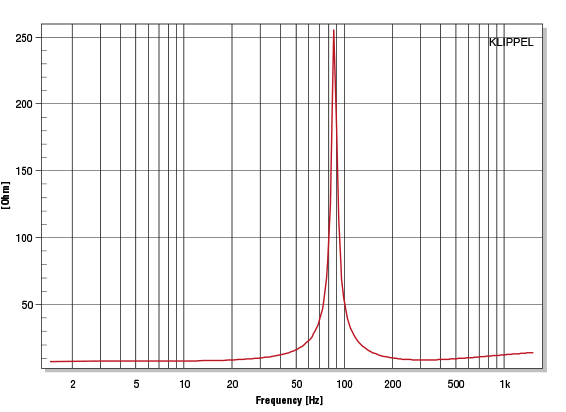

FREQUENCY RESPONSE / IMPEDANCE CHART

SPECIFICATIONS
Series Ascension
Nominal Chassis Diameter 12” / 304.8 mm
Power Rating (AES) 30 Watts
Frequency Range 75Hz - 5kHz
Impedance 8 / 16 Ω
Sensitivity 100 dB
Magnet Weight 1.7 Kg / 59.97 oz
Magnetic Gap Depth 8 mm / 0.31”
Flux Density 1.4 Tesla
Coil Winding Height 10.7 mm / 0.42”
Voice Coil Diameter 44.45 mm / 1.75”
Voice Coil Material Copper
Former Material Paper
Magnet Material Ceramic
Chassis Material Pressed Steel
Cone Material Paper
Front Gasket Material Foam
Surround / Edge Termination Paper
Dust Dome Fabric
Connectors Solder Tabs
Overall Diameter 309 mm / 12.17”
Flange Height 5 mm / 0.20”
Overall Depth 130 mm / 5.12”
Magnet Structure Diameter 152 mm / 5.98”
Gasket(s) Supplied Front & Rear
Baffle Cut-out Diameter 284 mm / 11.18”
Mounting Hole Information 4 x ø8mm on 297 mm PCD
Nett Weight 4.85 Kg / 10.69 lb
Shipping Weight 5.45 Kg / 12.01 lb
Carton Dimensions 340 x 350 x 210 mm
DescriptionSizeFormatGet File
Fane Ascension F30 Datasheet575188.pdfDOWNLOAD
